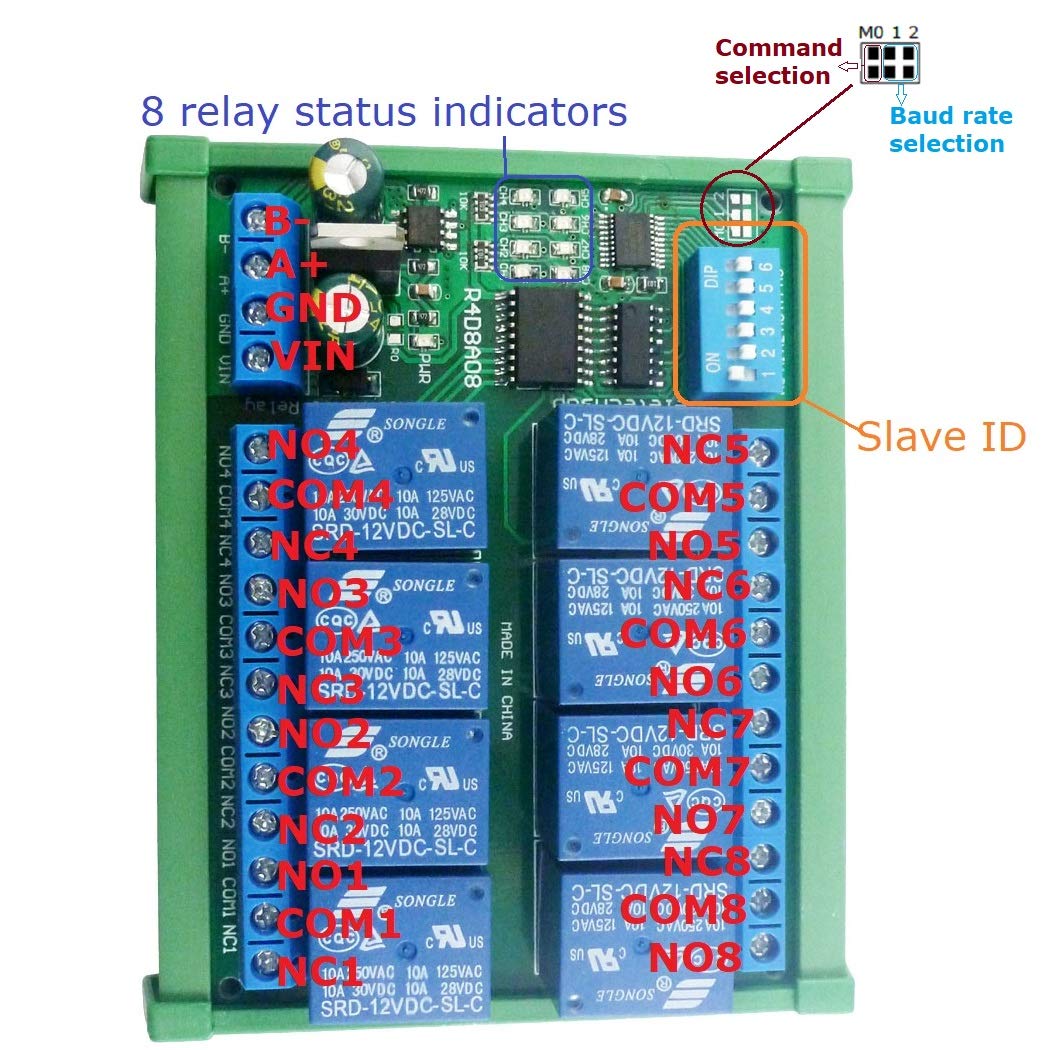

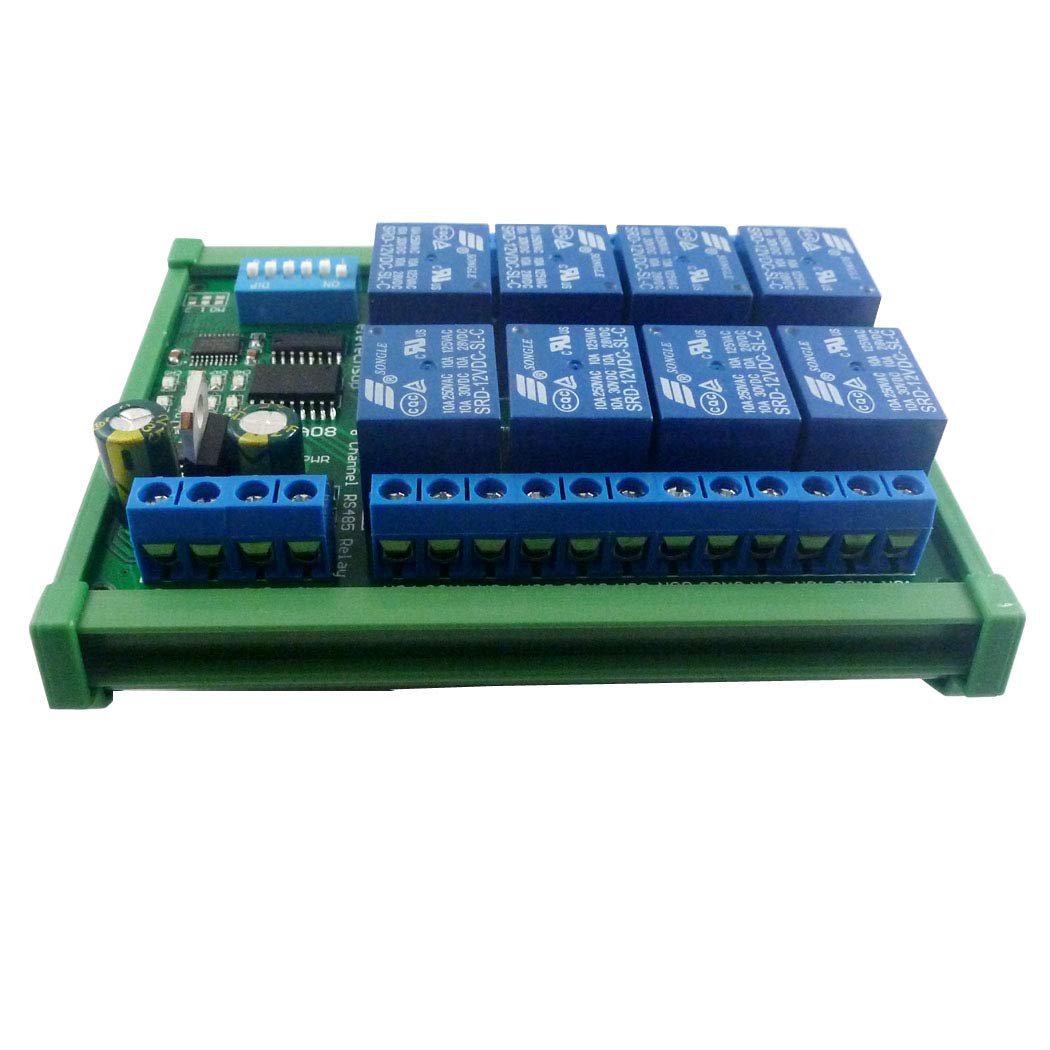

DC 12V 8 Ch RS485 Relay Board Modbus RTU UART Remote Control Switch DIN35 Rail Box for PLC Automation Control (5 x 12V No Shell)
Product details
| Management number | 215612525 | Release Date | 2026/04/12 | List Price | $23.90 | Model Number | 215612525 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name: DC 12V 8 Ch RS485 Relay Board Modbus RTU UART Remote Control Switch DIN35 Rail Box for PLC Automation controlPackage inlcuded:DC 12V 8Ch Din35 Rail RS485 Modbus RTU Relay ModuleDescription: 1. DC 12V power supply(Range 10-13V) 2. Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 68MA, 3 relays open 94MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 224MA3. ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands4. Two instruction-control mode : MODBUS RTU command and AT command5. Under the ''Delay'' command ,the maximum delay is 255 seconds; Under the AT command ,the maximum delay is 9999 seconds6. MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter;7. Under the MODBUS command mode, it can support up to 64 devices in parallel8. The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS9. Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box)10. Weight: 120g(Only PCB Board);198g(with Din Rail Box)11. Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDCFor more information, please contact meDIN rail Box parameters:Product model: UM72Color: greenInsulation grade: flame-retardant VO gradeNet weight: 72gInstallation: DIN35 and C45 railApplication:Automated industry PLCSmart HomeCCTV PTZ CameraIdentification system;Motor FW/BWAutomatic curtain controlAutomatic door control
- DC 12V 8Ch Din35 Rail RS485 Modbus RTU Relay Module
- ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
- Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
- Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box)
- Weight: 120g(Only PCB Board);198g(with Din Rail Box)
| UPC | 755502062642 |
|---|---|
| Model | R4D8A08 |
| Brand Name | eletechsup |
| Part Number | R4D8A08 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | eletechsup |
| Mounting Type | din_rail |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Specification Met | Din |
| Included Components | Module |
| Maximum Switching Current | 10 Amps |
